Measurement Guide

Measure your cabinet openings to select the correct drawer size

To assist you to summarize the total quantity of pull-out drawers by the size you want to order,  print Our PDF Measuring Guide below.

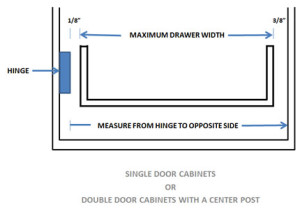

  • Check for obstructions at back of shelf
  • Shelf depth must be > 21 5/8″
  • Measure opening, as shown above
  • Subtract 1/2″ to obtain maximum drawer width
  • Select same size or smaller drawer
  • Record data on Measuring Form

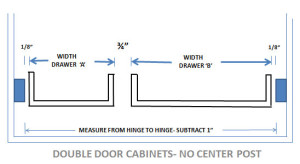

  • Open both cabinet doors
  • Check for obstructions at back of shelf
  • Shelf depth must be > 21 5/8″
  • Measure opening, as shown above
  • Subtract 1″ to obtain opening capacity
  • Any combination of 2 drawers < capacity will fit

E.g. Capacity=34″. Could select 2-17″ or 1-20″ + 1-14″

When selecting uneven sizes, will have to open both cabinet doors to roll out the larger drawer

Drawer Widths available 11″ – 14″ – 15″ – 17″ – 20″. All drawers are 3″ high and 21 5/8″ deep

SHELF DEPTH MUST BE 22″ OR GREATER

Example for checking correct drawer size



Location Measurement Minus 1/2″ or 1″ Opening Order Quantity
Drawer Size   11″ 14″ 15″ 17″ 20″
Pantry 17 3/4″ 1/2″ 17 1/4″       5
Right of fridge 33″ 1″ 32″     1 1
Totals       1 6
Location Measurement Minus 1/2″ or 1″ Opening Order
Drawer Size       11″ 14″ 15″ 17″ 20″
Totals
